Dura Edge Guide : How to Install Refill series blades




Step 1: Buy the proper size refills

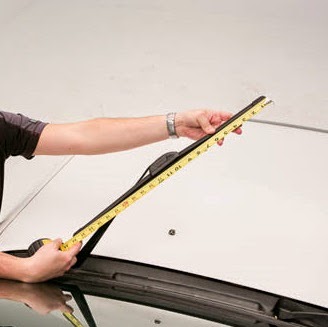

                                               Measure the blades

Measure both blades and buy refill the exact lengths. First measure your wiper blade refills to get the exact replacement length. Go to an auto parts store with your tape measure to find the exact length refills.
Tip: Don't assume the refill inserts are the same length on the driver's side and the    passenger's side. One is often an inch or longer than the other.



Step 2: Slide out the old blade



 Remove the old blade


Pinch the retaining clips and slide the old blade out of its frame. Pull the wiper arm back from the glass, then double up a bath towel over your windshield just in case the wiper arm gets away from you and snaps back against the glass. Once the arm is pulled back, pivot the blade so the bottom of the blade flips up toward the top. Locate the small shiny retaining clips near the end of the refill. Pinch them together with a needle-nose plier and start sliding out the refill. Once the clips slides under the blade clamp set the pliers down and pull out the old refill with one hand while supporting the blade with the other.







Step 3: Slide in the refill





                                                            Insert the refill



Slide in the refill until the retaining clamp clicks into place.
Carefully slide the new refill into the same end you pulled the old one from. Make sure the new refill is held between each clamp (to avoid scratching your windshield) and that the retaining clip clicks into position in the last clamp. Gently pivot the arm back into position, release the arm and repeat the process for the other side.
